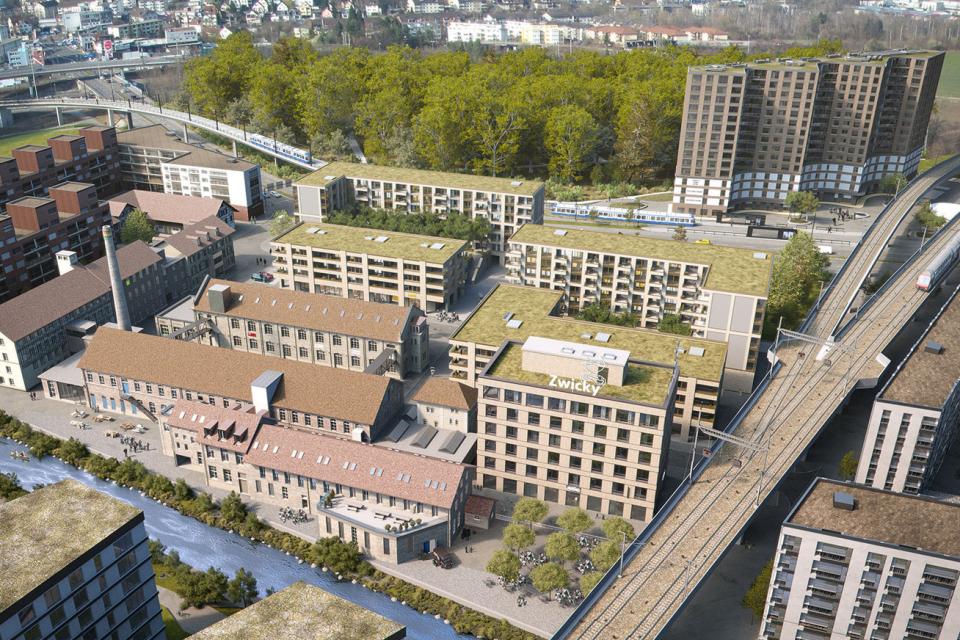

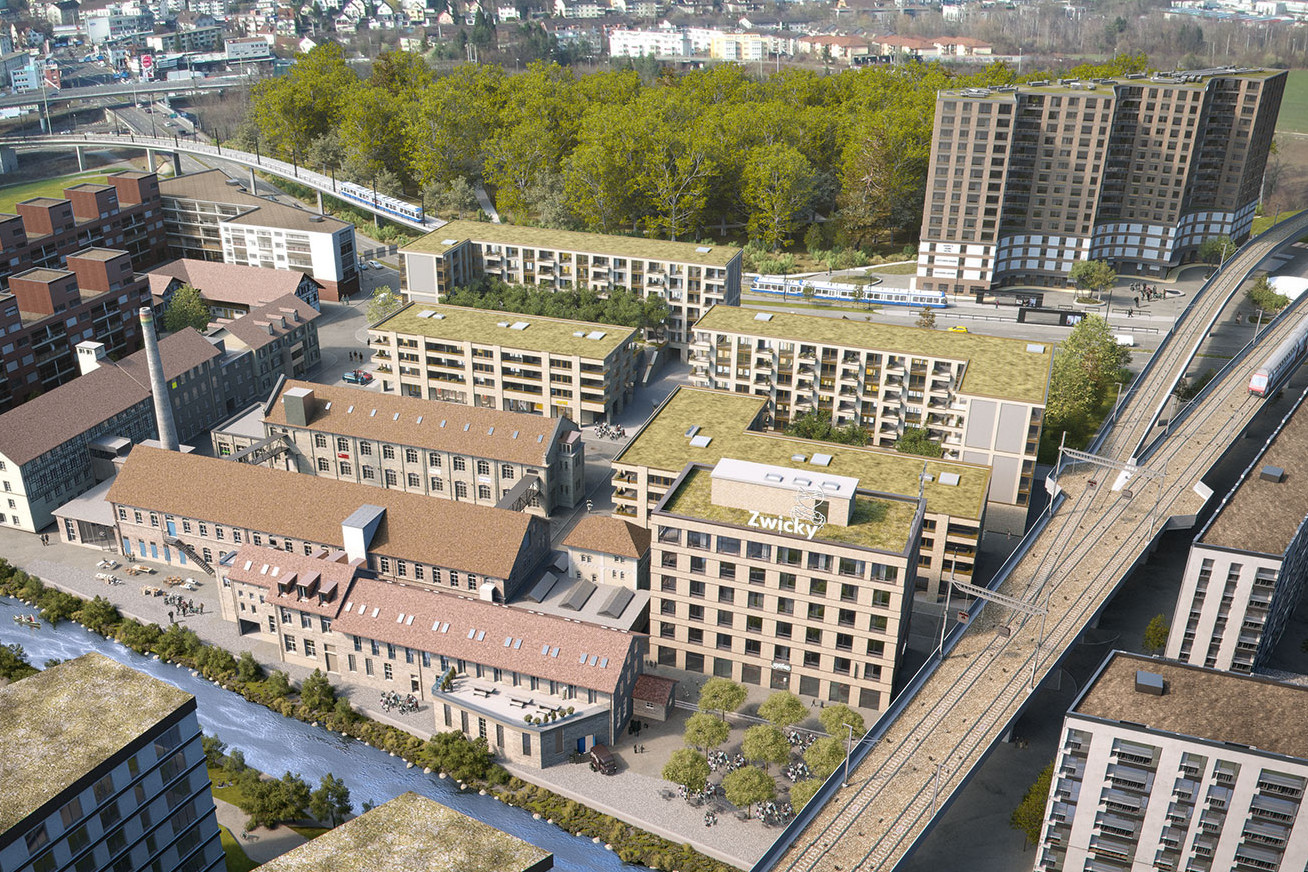

Excavation pit monitoring at the Zwicky site in Wallisellen

The former Zwicky site in Wallisellen is being redesigned. The “Waldhaus NeuGuet” is a 50-meter-high residential tower with 98 condominiums in a new neighborhood. The Zwicky site is surrounded by several sensitive buildings. Among other things, the bridge piers of the SBB viaduct and the excavation pit closures must be closely monitored. A multi-sensor system consisting of a total station, a chain inclinometer, and anchor force measuring cells is used for monitoring. In addition, manual settlement measurements are carried out.

Services

• Permanent 3D monitoring measurements of bridge piers and excavation pit closures
• Installation and operation of a 1-total station monitoring system
• Installation and operation of 2 automatic vertical chain inclinometers, each with 10 sensors
• Installation and operation of 12 automatic anchor force measuring devices
• Manual settlement measurements on surrounding objects
• Alarm system when limit values are exceeded
• Project in collaboration with Gossweiler AG
• All recorded data is documented in TEDAMOS Web, our password-protected customer portal with 24/7 access.

Technologies

• 1 precision total station with 30 monitoring points
• 2 automatic chain inclinometers, each with 10 sensors
• 12 automatic anchor force measuring devices
